TU-SB-NA-36-36

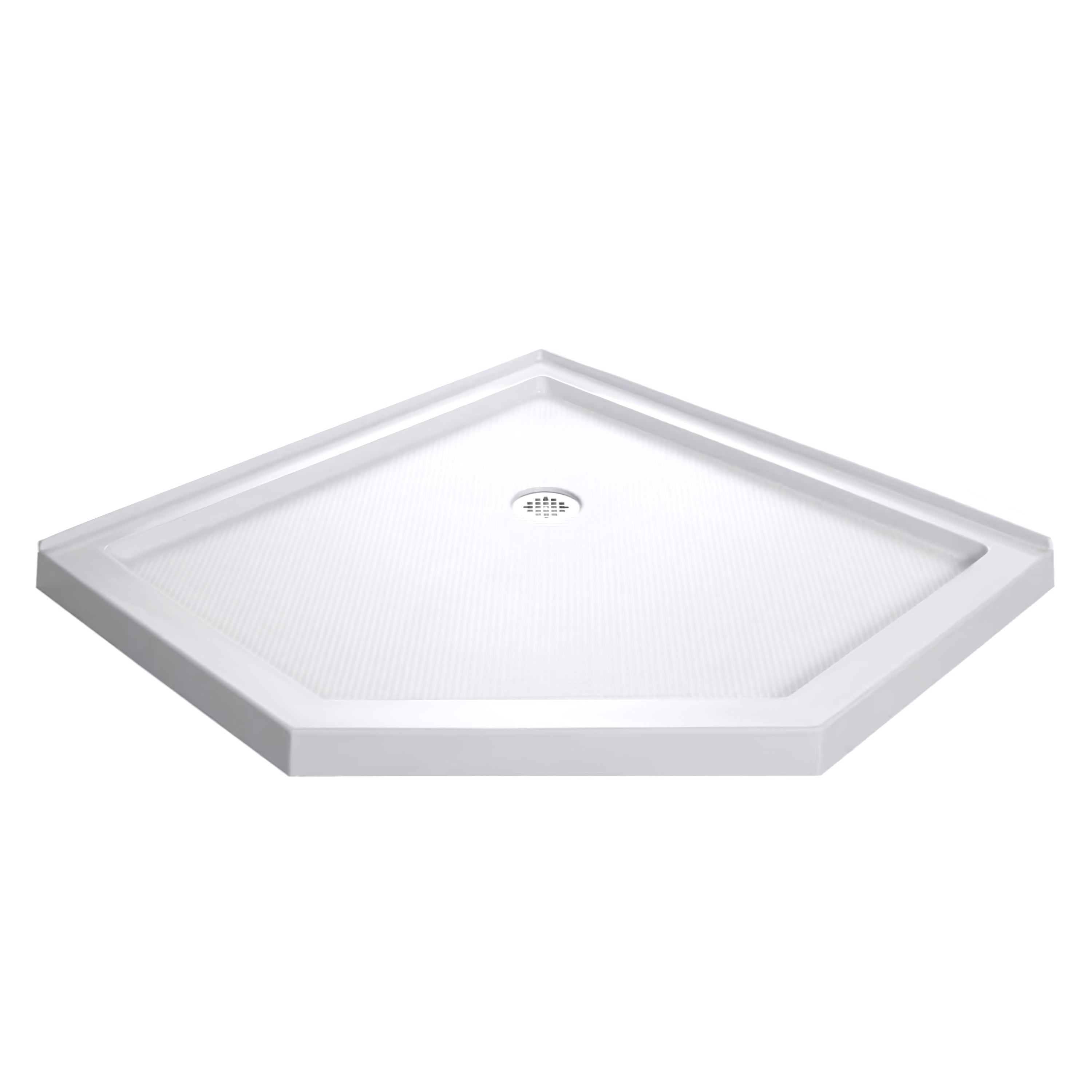

LowStep Neo-Angle Shower Base
Description

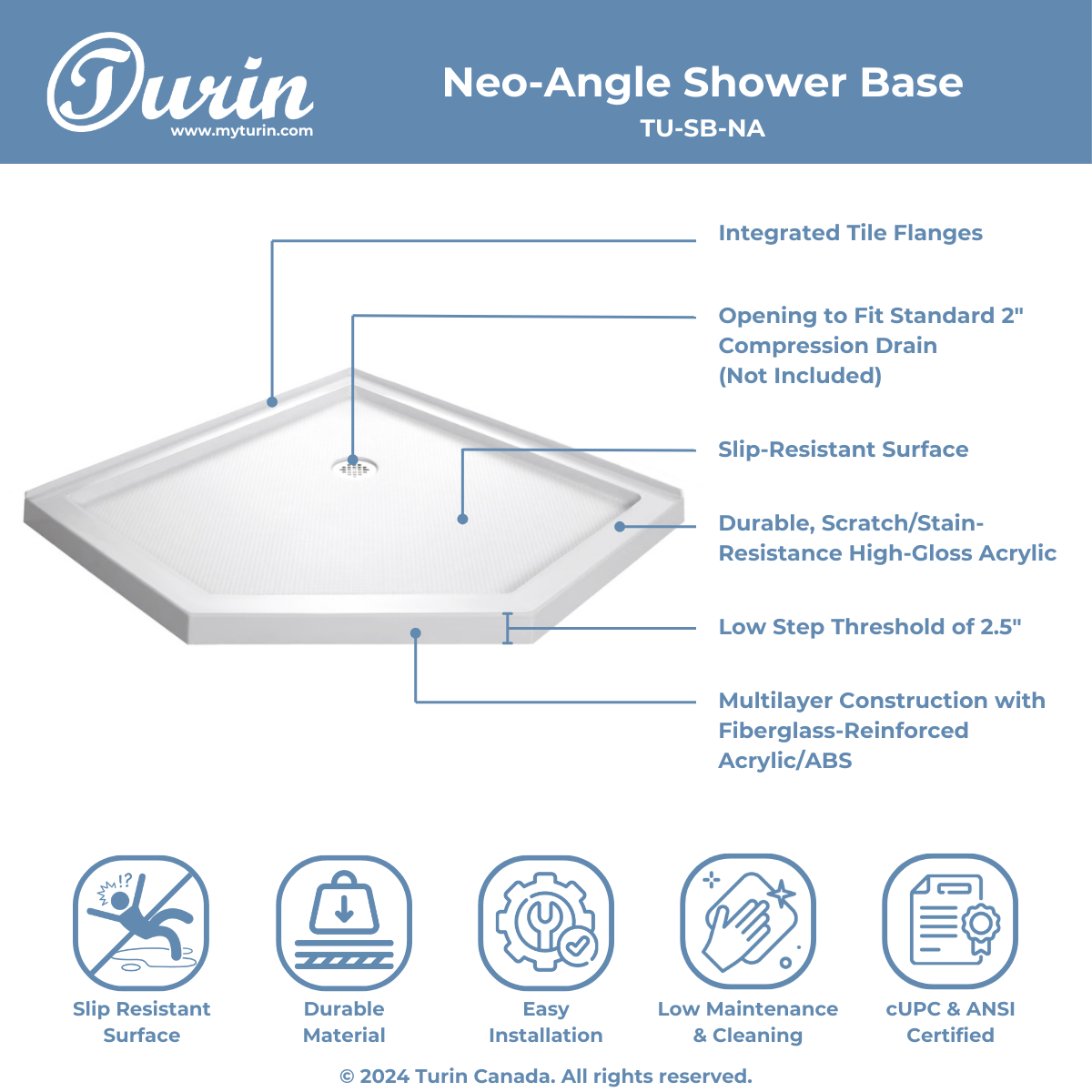

Turin LowStep Neo-Angle Shower Base is the ideal solution for unique bathroom spaces, featuring a low-profile threshold height of 2.5 inches and an angular design to optimize corner installations. This model offers both style and practicality, creating a modern, accessible shower solution in a compact, space-saving design. Integrated tile flanges, positioned against surrounding walls, ensure leak-proof tiling and simplify installation. The slip-resistant surface prioritizes safety, providing dependable traction for all users. Crafted from high-quality, durable acrylic that resists scratches and stains for lasting performance and beauty.
Features :
- Installation: Corner
- Moulded Tiling flange: Two for leak-proof tiling
- Material: Fiberglass reinforced acrylic

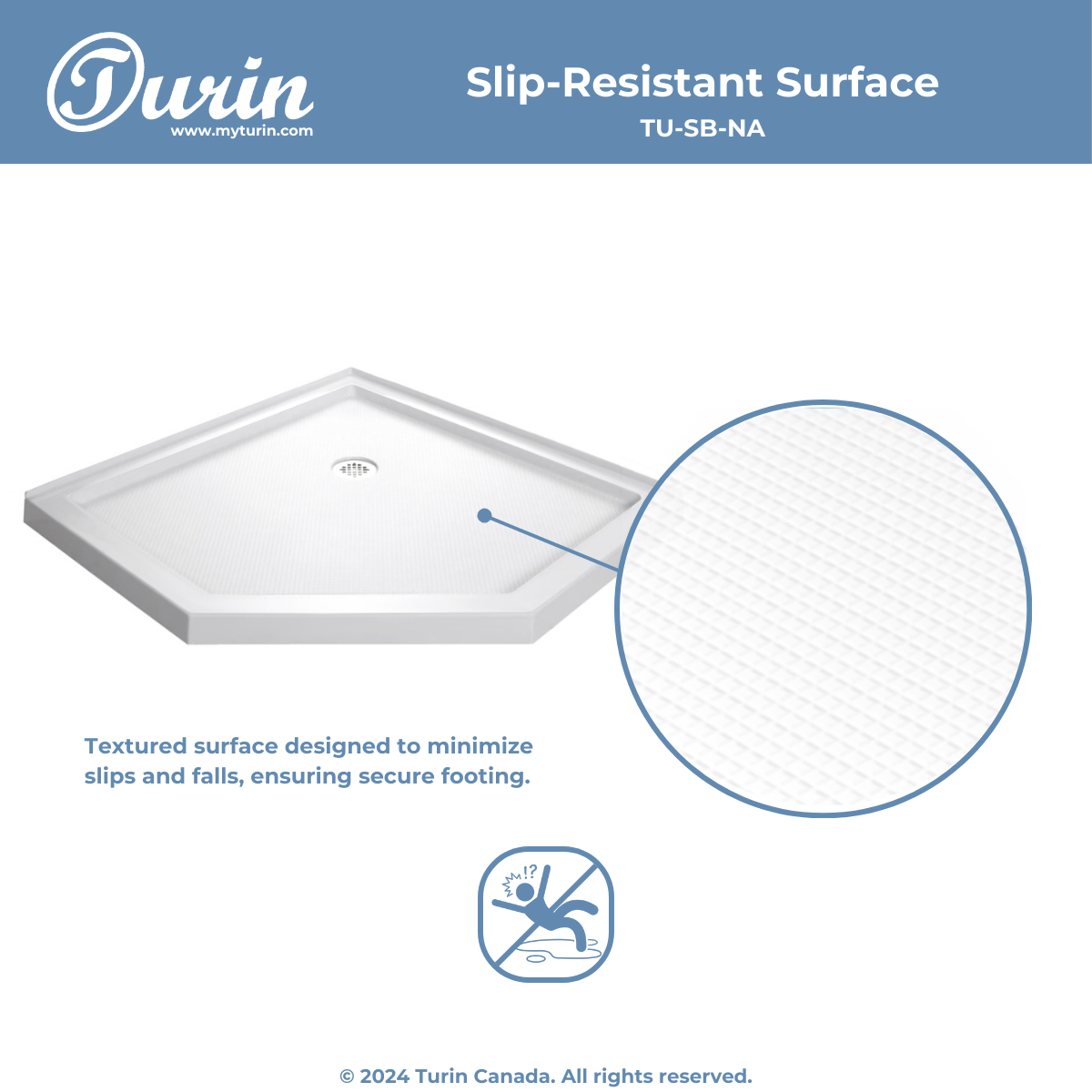

- Surface: Slip-resistant for enhances safety
- Drain Opening: Standard 2-inch for compression fitted drains (drain not included)
- Certifications: cUPC, ANSI, and CSA, ensuring compliance with industry-leading safety and quality standards
-
Design: Modern & timeless
Compatible with Turin shower door models or other standard-sized doors. See technical drawings for precise measurements and compatibility details.
Specifications
- SKU : TU-SB-NA-36-36
- Dimensions : 36 in W x 36 in D x 2.5 in H
- UPC : 874524006707
- Weight (kg) : 16.0
- Side Threshold Depth : 2.75
- Threshold Depth : 2.75
- Drain Position : Corner
- Height Threshold (in) : 2.5

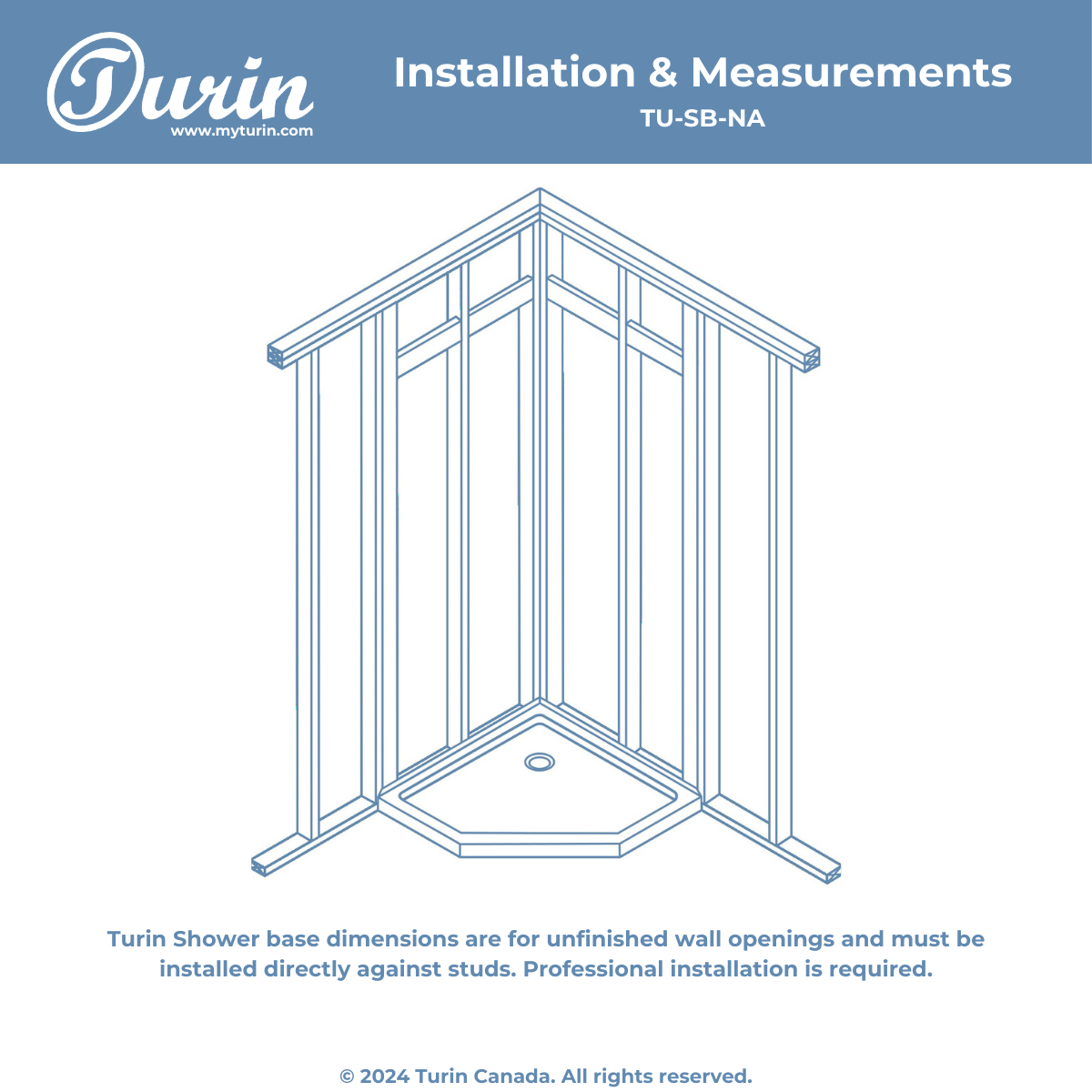

Technical Drawing
Installation Manual
