EN19164S-W30

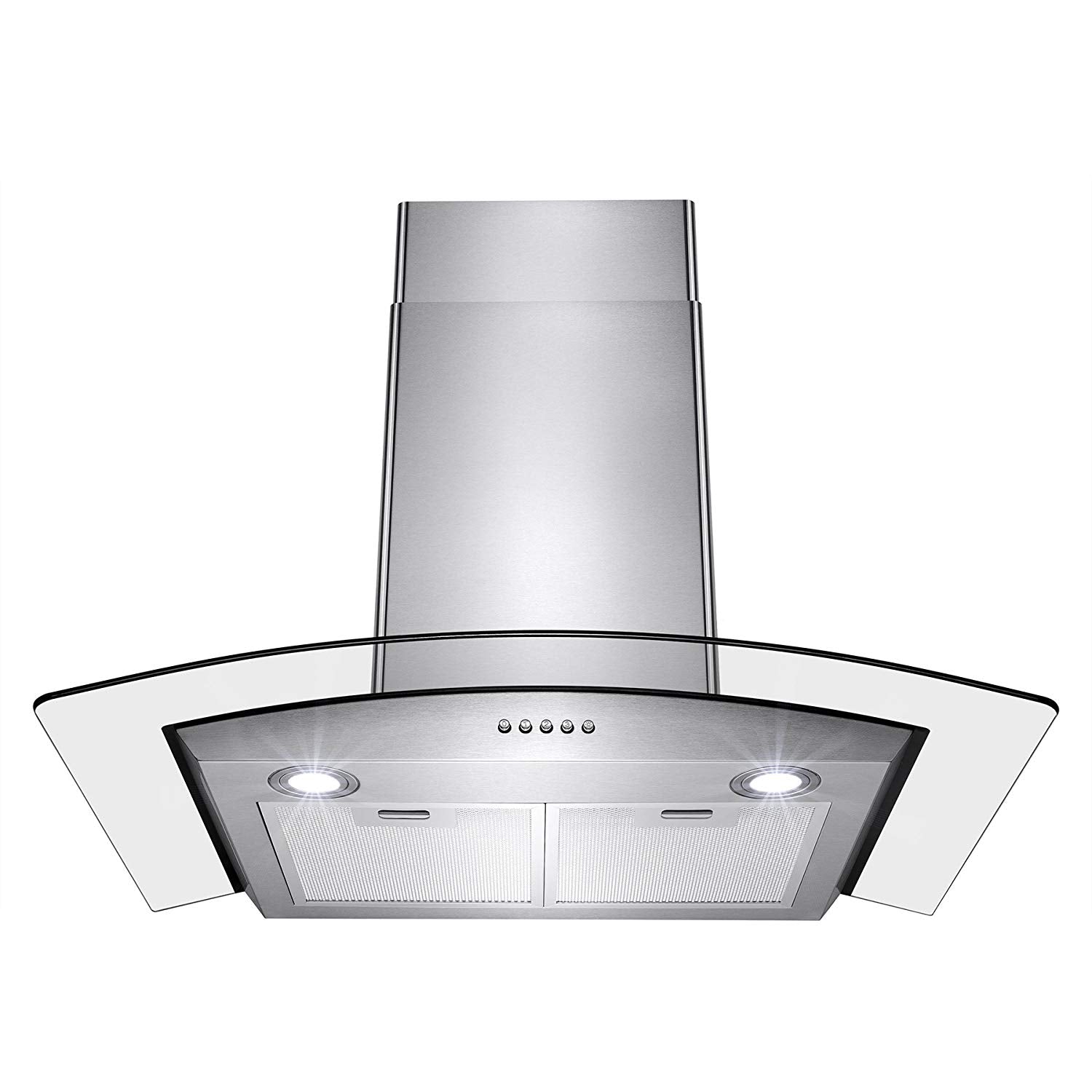

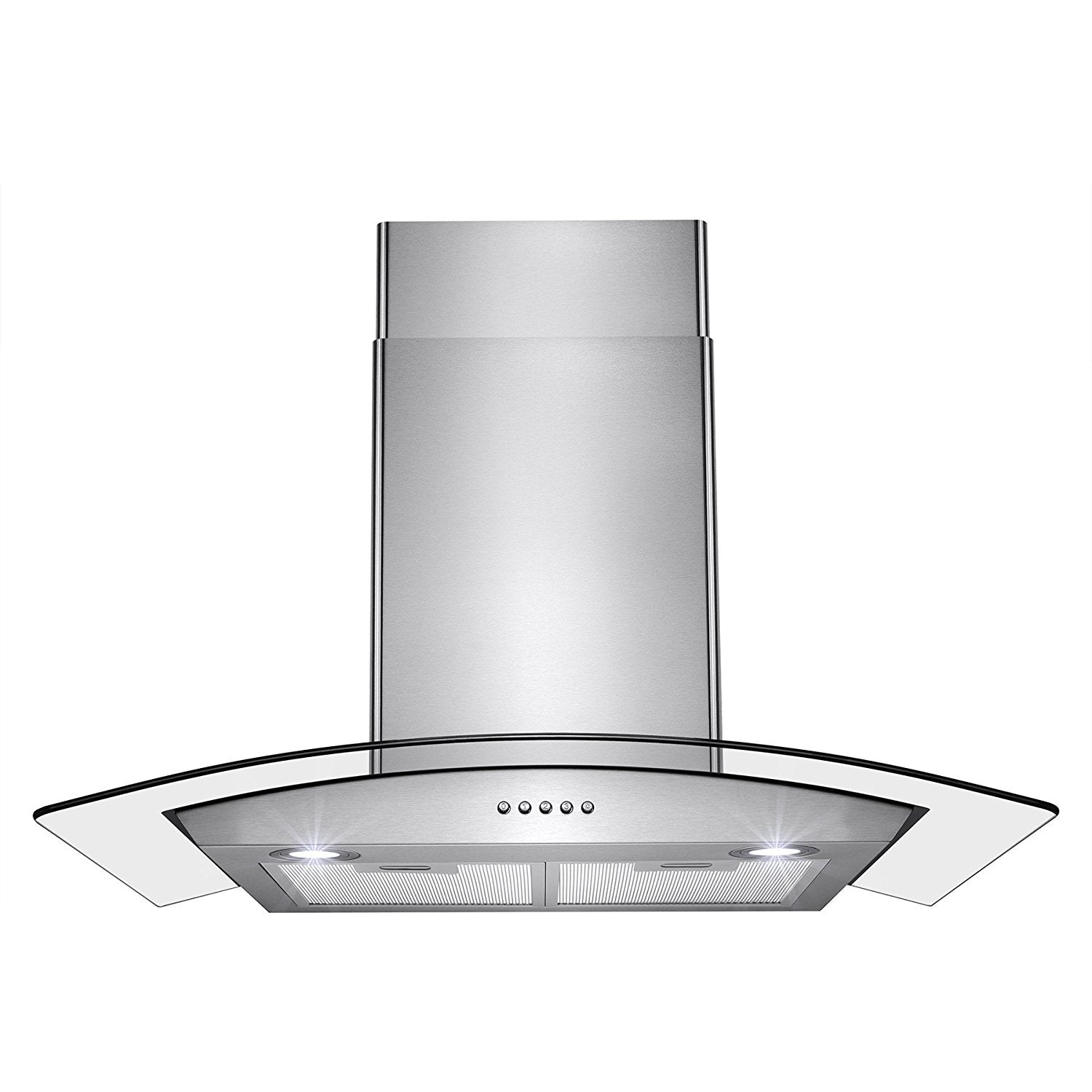

Turin Innovation Wall Mounted Range Hood
Description
This modern and minimalist range hood is designed to enhance any contemporary kitchen with its sleek appearance and advanced functionality.
Features :
- Mounting Type: Wall-Mounted
- Finish: Stainless Steel
- Maximum Airflow: 860 CFM
- Control Panel: Three-speed mechanical push-button controls
- Filter Type: Six-layer aluminum mesh filters (dishwasher safe)
- Ventilation Type: Ducted (ventilation to outside only, no recirculation options)
- Exhaust: 6-inch round (top vent)
- Noise Level at First Speed: 45 dB (4 sones)
- Lights: Two 1.5-watt LED lights (12V)
- Power: 120V-60Hz with standard 3-prong plug
- Compatibility: Suitable for gas, propane, electric, and induction stoves
- Certifications: ETL
Specifications
- SKU : EN19164S-W30
- Dimensions : 29.5 in W x 18.5 in D x 2.5 in H

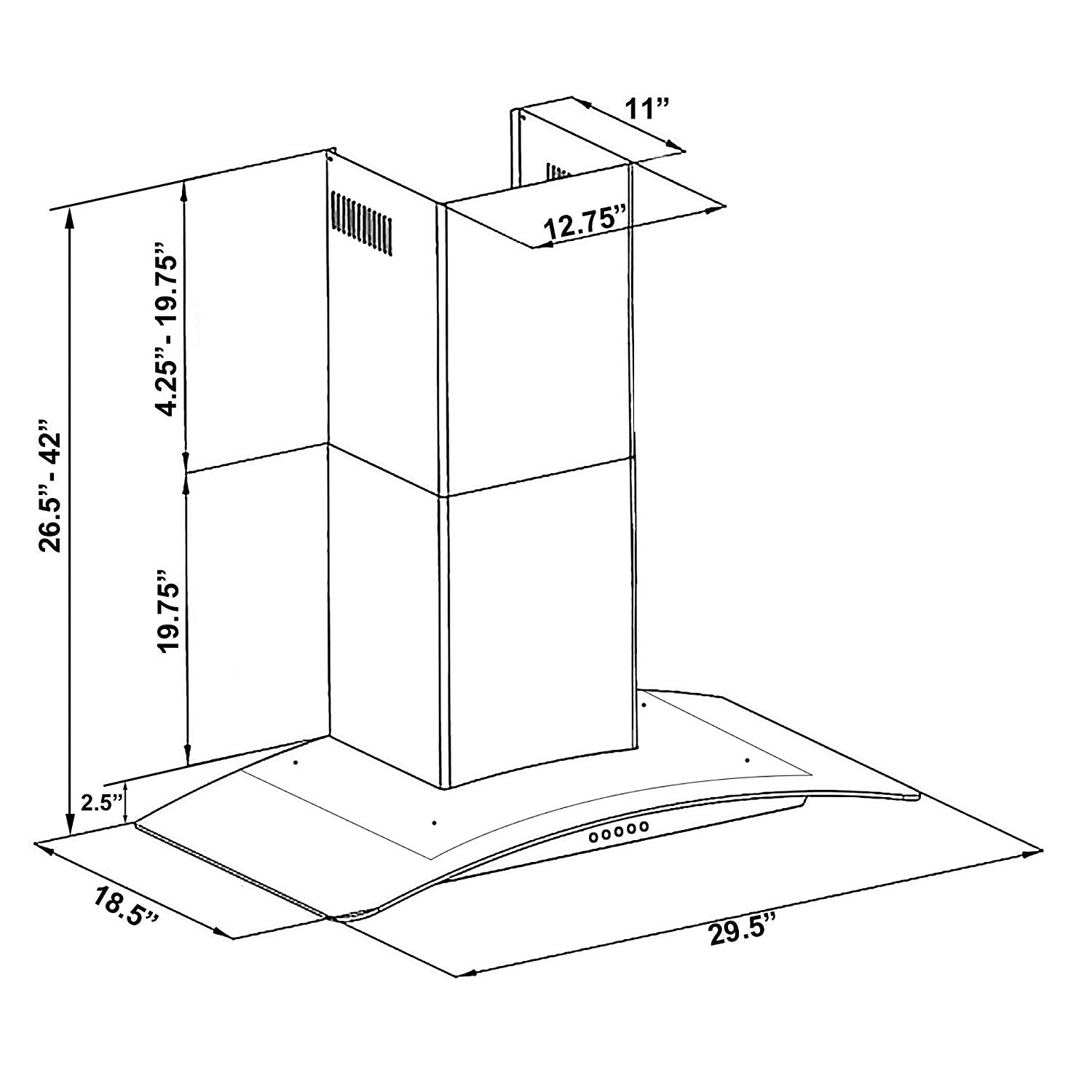

Technical Drawing
Installation Manual
